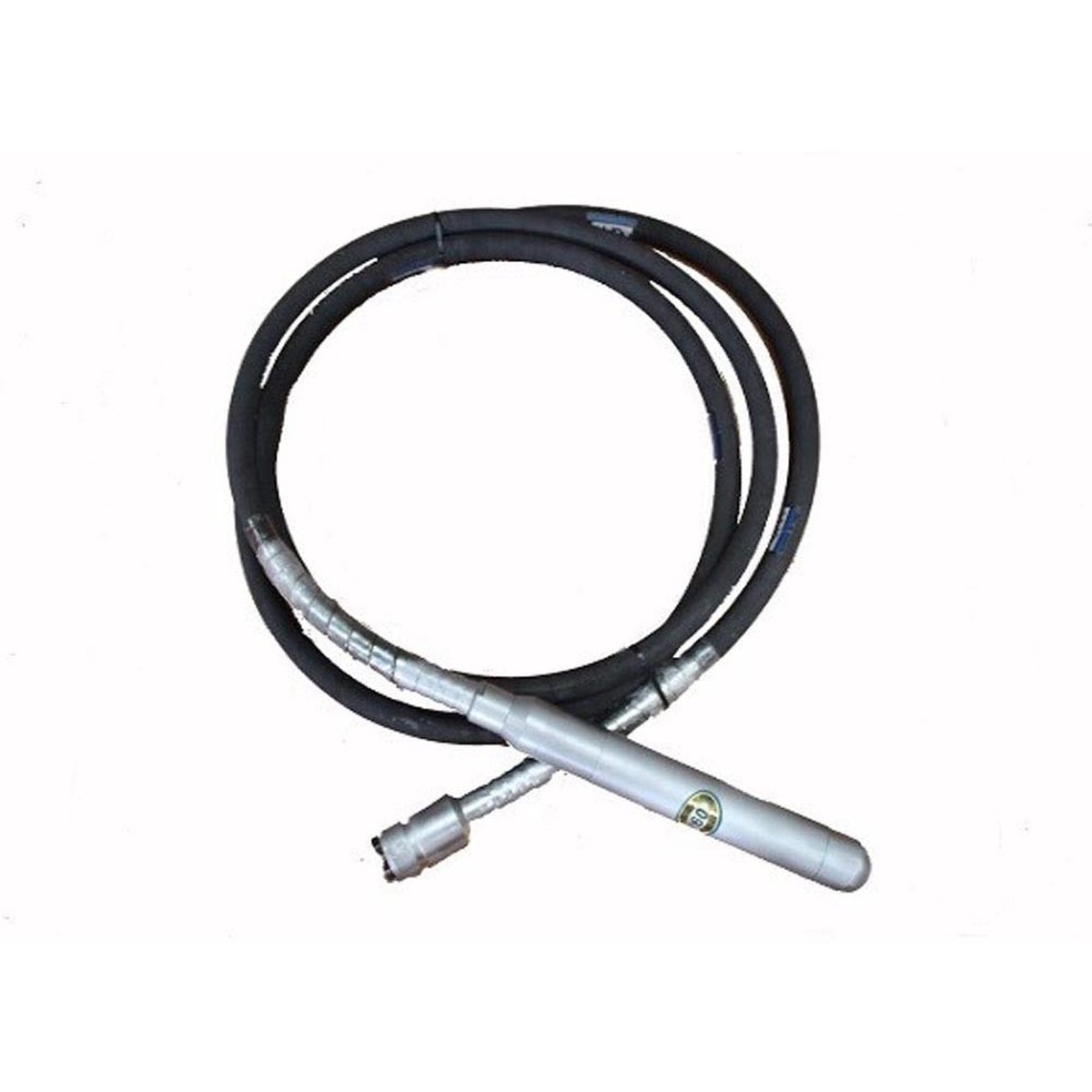

HOPPT 28mm x 6m Concrete Vibrator
Hoppt VIB38 Range of Concrete Vibrators with flexible shaft are built, using the pendulum principal. The vibration and rotational speed of the vibrator head is properly analysed and synchronised by using a Stroboscope for the correct functioning of the device.
Specification
- Operating Weight (kg): 18
- Amplitude (mm): 1.1
- Flexible Shaft/Hose Length (m): 6.0
- Shaft Revolution (rpm): 3,000
- Vibrating Frequency – (vpm): 163 – 208 (9,800 – 12,500)
- Head Dimension – x L (mm): 28 x 460
- Coupling Type: Hoppt Three-Dog
- Drive Unit Engine: Honda GX 160 / Robin EX17 or EY20-3C / Hatz 1B20
- Drive Unit Engine Type: GX160 or EX17 or EY-20-3C (4Stroke Petrol)/ 1B20 (4 Stroke Petrol)
- Drive Unit Maximum Power Output hp (kW): GX160 @ 4.8 (3.6kW) / EX17 @ 6.0 (4.2kW) / 1B20 @ 4.6 (3.5kW)
