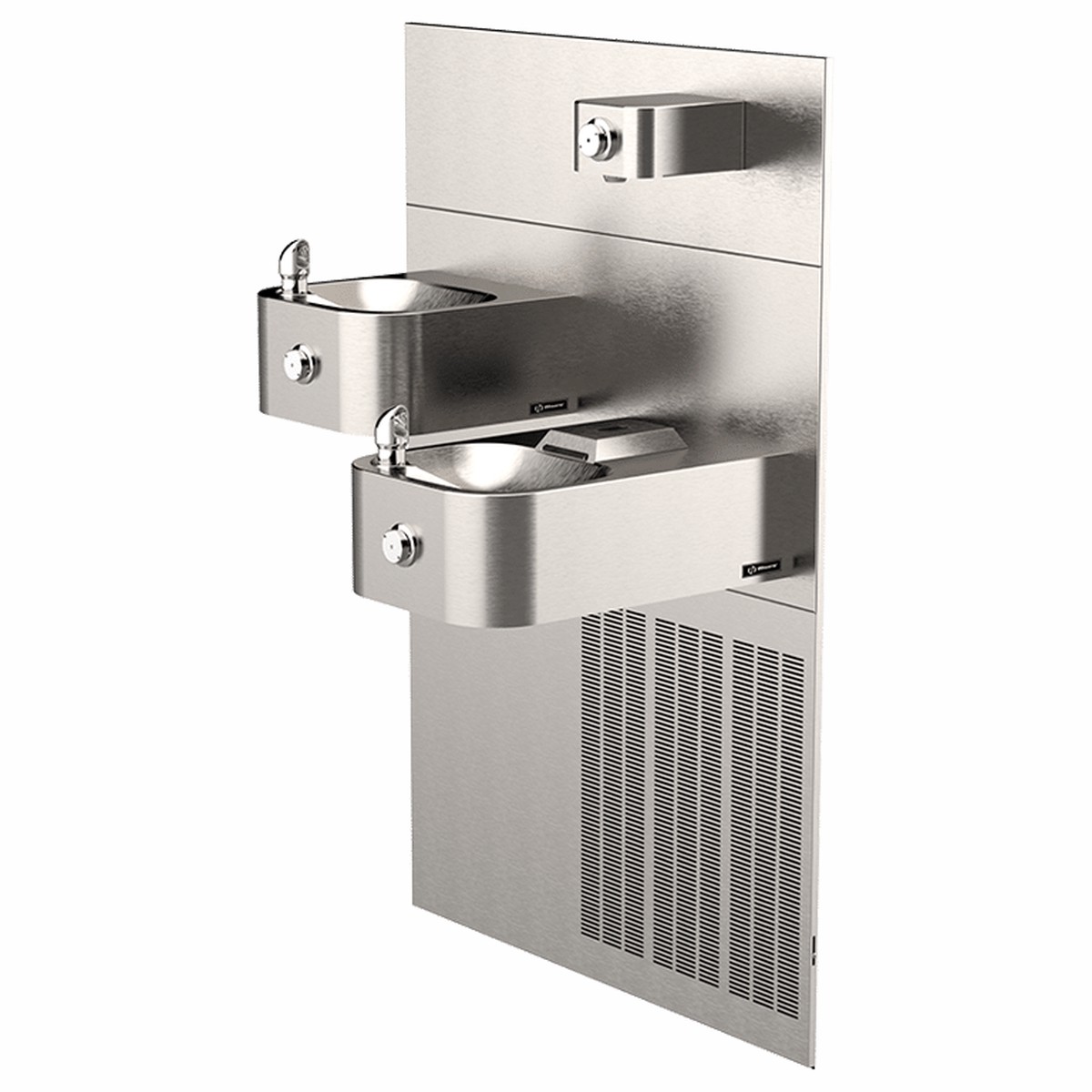

ADA Vandal-Resistant Chilled Dual Drinking Fountain And Bottle Filler

Manufacturer: Haws, Manufacturer Part Number: 1119.8P

Model 1119.8P vandal-resistant wall-mounted ADA water cooler and bottle filler shall include dual 18-gauge Type 304 Stainless Steel satin-finish basins, 14 gauge bottle filler bracket, 16 gauge galvanized steel in-wall mounting frame with welded-in heavy-duty 10 gauge mounting plate, vandal-resistant push button operated stainless steel valves with front accessible cartridge, in-line strainer and flow adjustment provide 100% lead free waterways, in-wall 3/16″ thick steel mounting plate for the bottle filler, polished chrome-plated brass vandal-resistant bubbler heads with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated vandal resistant waste strainers, vandal-resistant bottom plates, stainless steel satin-finish back panel and louvered intrusion proof grill, high and low fountain mounting levels, and 1-1/4 NPT traps. The refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50 F (10 C) cooled from 80 F (26.7 C) inlet water at 90 F (32.2 C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5. Haws electric water coolers comply with ARI Standard 1010 and ANSI A117.1, and are listed by Underwriter Laboratories to U.S. and Canadian standards. FOR INDOOR USE ONLY

Product Includes:
1119.8: Chilled Dual Drinking Fountains
1920: Bottle Filler
HCR8: Remote Chiller
BP32: Back Panel
67oo: Mounting Plate
6469: Drip Tray
MTGFR.LG:Mounting Frame
